JC-1 是一种广泛用于检测线粒体膜电△Ψm位的理想荧光探针。JC-1染料以电势依赖性的方式积聚在线粒体内，可以用来检测细胞、组织或纯化的线粒体膜电位。正常线粒体内，JC-1聚集在线粒体基质中形成聚合物，聚合物发出强烈的红色荧光（Ex=585 nm, Em=590 nm）；不健康的线粒体由于膜电位的下降或丧失，JC-1只能以单体的形式存在于胞浆中，产生绿色荧光（Ex=514 nm, Em=529 nm）。JC-1不仅可用于定性检测，因颜色的变化可以非常直接的反映出线粒体膜电位的变化。也可以用于定量检测，因线粒体的去极化程度可以通过红/绿荧光强度的比例来衡量。观察时，只需使用常规的观察红色荧光和绿色荧光的设置即可。
JC-1 用于检测细胞的线粒体膜电位时常用的浓度范围为 1～20 µg/mL，对于很多细胞适宜采用的 JC-1浓度为 10 µg/mL。
| 化学名称（Chemical name） | 5,5‘,6,6’-Tetrachloro-1,1‘,3,3’-tetraethylbenzimidazolylcarbocyanine iodide |
| CAS号（CAS NO.） | 3520-43-2 |
| 分子式（Formula） | C25H27Cl4IN4 |
| 分子量（Molecular Weight） | 652.23 |
| 纯度（Purity） | ＞95%（HPLC） |
| 外观（Appearance） | 红褐色粉末 |
| 溶解性（Solubility） | 溶于DMSO和DMF，不溶于水 |
| 荧光光谱 （Fluorescent spectrum） | 单体形式（monomer form）：Ex=514 nm, Em=529 nm 聚合物形式（J-aggregate form）：Ex=585 nm, Em=590 nm |

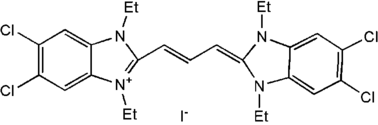

| 结构式 |  |
冰袋（wet ice）运输。
粉末-20℃干燥避光保存，至少一年有效。储存液分装成单次使用量，-20℃干燥避光保存，避免反复冻融，约一年有效。
Q：JC-1线粒体膜电位荧光探针，这个产品可以做组织切片染色吗？
A：把活体组织消化成单个细胞，保证细胞的活性，再进行染色。
Q：JC-1染色前，可以先固定细胞吗？
A：不可以，JC-1染料以电势依赖性的方式积聚在线粒体内，可以用来检测细胞、组织或纯化的线粒体膜电位的。固定会破坏电势，导致探针无法聚集在线粒体上，而失去特异性。
Q：JC-10和JC-1比较，升级、改进的点？
A：JC-10是一种新型的用来监测线粒体膜电位变化的荧光探针，是JC-1的优越替代物。与JC-1相比，具有以下几个重要优势:1)溶解性得以改良——在水溶液中形成沉淀可能性明显降低；2)使用更方便——简化步骤将手动操作时间最小化；3)荧光信号更高——改良的信号与背景荧光的信噪比；4）结果更稳定——优化探针以保证更连续性和稳定性结果。
Q:染色之后，出现了入核的情况，实验组较多，对照组较少，为什么呢？
A：mitosox是进入线粒体后会被超氧化物氧化，然后与线粒体内的核酸结合发出红色的荧光。实验组中经过药物处理，线粒体膜电位消失，超氧化物溢出氧化探针后，探针与细胞核中的核酸结合。
Q:JC-1工作液有聚集颗粒，打算染色前用离心的方法去除后再使用，离心的参数有推荐吗？
A：可以用13000 g 离心JC-1工作液约1-2分钟 。
[1] Gong H, Chen H, Xiao P, et al. miR-146a impedes the anti-aging effect of AMPK via NAMPT suppression and NAD+/SIRT inactivation. Signal Transduct Target Ther. 2022;7(1):66. Published 2022 Mar 4. doi:10.1038/s41392-022-00886-3(IF:18.187)
[2] Zhang W, Liu J, Li X, et al. Precise Chemodynamic Therapy of Cancer by Trifunctional Bacterium-Based Nanozymes. ACS Nano. 2021;15(12):19321-19333. doi:10.1021/acsnano.1c05605(IF:15.881)
[3] Jiao D, Wang J, Yu W, et al. Biocompatible reduced graphene oxide stimulated BMSCs induce acceleration of bone remodeling and orthodontic tooth movement through promotion on osteoclastogenesis and angiogenesis. Bioact Mater. 2022;15:409-425. Published 2022 Feb 6. doi:10.1016/j.bioactmat.2022.01.021(IF:14.593)
[4] Gao J, Wang Z, Guo Q, et al. Mitochondrion-targeted supramolecular "nano-boat" simultaneously inhibiting dual energy metabolism for tumor selective and synergistic chemo-radiotherapy. Theranostics. 2022;12(3):1286-1302. Published 2022 Jan 1. doi:10.7150/thno.67543(IF:11.556)
[5] Wang K, Jiang L, Zhong Y, et al. Ferrostatin-1-loaded liposome for treatment of corneal alkali burn via targeting ferroptosis. Bioeng Transl Med. 2021;7(2):e10276. Published 2021 Dec 8. doi:10.1002/btm2.10276(IF:10.711)
[6] Shen J, Rees TW, Zhou Z, Yang S, Ji L, Chao H. A mitochondria-targeting magnetothermogenic nanozyme for magnet-induced synergistic cancer therapy [published online ahead of print, 2020 Apr 29]. Biomaterials. 2020;251:120079. doi:10.1016/j.biomaterials.2020.120079(IF:10.317)
[7] Liu K, Zhao Q, Liu P, et al. ATG3-dependent autophagy mediates mitochondrial homeostasis in pluripotency acquirement and maintenance. Autophagy. 2016;12(11):2000-2008. doi:10.1080/15548627.2016.1212786(IF:9.108)
[8] Yang W, Zhang J, Xu B, et al. HucMSC-Derived Exosomes Mitigate the Age-Related Retardation of Fertility in Female Mice. Mol Ther. 2020;28(4):1200-1213. doi:10.1016/j.ymthe.2020.02.003(IF:8.986)
[9] Wei WJ, Sun ZK, Shen CT, et al. Obatoclax and LY3009120 Efficiently Overcome Vemurafenib Resistance in Differentiated Thyroid Cancer. Theranostics. 2017;7(4):987-1001. Published 2017 Feb 23. doi:10.7150/thno.17322(IF:8.766)
[10] Yuan F, Liu B, Xu Y, et al. TIPE3 is a regulator of cell apoptosis in glioblastoma. Cancer Lett. 2019;446:1-14. doi:10.1016/j.canlet.2018.12.019(IF:8.679)
[11] Hu XK, Rao SS, Tan YJ, et al. Fructose-coated Angstrom silver inhibits osteosarcoma growth and metastasis via promoting ROS-dependent apoptosis through the alteration of glucose metabolism by inhibiting PDK. Theranostics. 2020;10(17):7710-7729. Published 2020 Jun 19. doi:10.7150/thno.45858(IF:8.579)
[12] Yang YF, Yang W, Liao ZY, et al. MICU3 regulates mitochondrial Ca2+-dependent antioxidant response in skeletal muscle aging. Cell Death Dis. 2021;12(12):1115. Published 2021 Nov 29. doi:10.1038/s41419-021-04400-5(IF:8.469)
[13] Xu Y, Sun Q, Yuan F, et al. RND2 attenuates apoptosis and autophagy in glioblastoma cells by targeting the p38 MAPK signalling pathway. J Exp Clin Cancer Res. 2020;39(1):174. Published 2020 Aug 31. doi:10.1186/s13046-020-01671-2(IF:7.068)
[14] Wang R, Deng M, Yang C, et al. A Qa-SNARE complex contributes to soybean cyst nematode resistance via regulation of mitochondria-mediated cell death. J Exp Bot. 2021;72(20):7145-7162. doi:10.1093/jxb/erab301(IF:6.992)
[15] Shen B, Wang S, Bharathi G, et al. Rapid and Targeted Photoactivation of Ca2+ Channels Mediated by Squaraine To Regulate Intracellular and Intercellular Signaling Processes. Anal Chem. 2020;92(12):8497-8505. doi:10.1021/acs.analchem.0c01243(IF:6.785)
[16] Sha B, Sun Y, Zhao S, et al. USP8 inhibitor-induced DNA damage activates cell cycle arrest, apoptosis, and autophagy in esophageal squamous cell carcinoma [published online ahead of print, 2022 Jan 13]. Cell Biol Toxicol. 2022;10.1007/s10565-021-09686-x. doi:10.1007/s10565-021-09686-x(IF:6.691)
[17] Zhan J, Li X, Luo D, et al. Polydatin Attenuates OGD/R-Induced Neuronal Injury and Spinal Cord Ischemia/Reperfusion Injury by Protecting Mitochondrial Function via Nrf2/ARE Signaling Pathway. Oxid Med Cell Longev. 2021;2021:6687212. Published 2021 Apr 20. doi:10.1155/2021/6687212(IF:6.543)
[18] Hu S, Zhang C, Ni L, et al. Stabilization of HIF-1α alleviates osteoarthritis via enhancing mitophagy. Cell Death Dis. 2020;11(6):481. Published 2020 Jun 25. doi:10.1038/s41419-020-2680-0(IF:6.304)
[19] Xu Y, Tang Y, Lu J, et al. PINK1-mediated mitophagy protects against hepatic ischemia/reperfusion injury by restraining NLRP3 inflammasome activation. Free Radic Biol Med. 2020;160:871-886. doi:10.1016/j.freeradbiomed.2020.09.015(IF:6.170)
[20] Chen L, Shi X, Xie J, et al. Apelin-13 induces mitophagy in bone marrow mesenchymal stem cells to suppress intracellular oxidative stress and ameliorate osteoporosis by activation of AMPK signaling pathway. Free Radic Biol Med. 2021;163:356-368. doi:10.1016/j.freeradbiomed.2020.12.235(IF:6.170)
[21] Zhao M, Gu L, Li Y, et al. Chitooligosaccharides display anti-tumor effects against human cervical cancer cells via the apoptotic and autophagic pathways. Carbohydr Polym. 2019;224:115171. doi:10.1016/j.carbpol.2019.115171(IF:6.044)
[22] Chen J, Wang D, Zong Y, Yang X. DHA Protects Hepatocytes from Oxidative Injury through GPR120/ERK-Mediated Mitophagy. Int J Mol Sci. 2021;22(11):5675. Published 2021 May 26. doi:10.3390/ijms22115675(IF:5.924)
[23] Tao Y, Qiao SM, Lv CJ, et al. Phytoestrogen arctigenin preserves the mucus barrier in inflammatory bowel diseases by inhibiting goblet cell apoptosis via the ERβ/TRIM21/PHB1 pathway [published online ahead of print, 2022 May 22]. Phytother Res. 2022;10.1002/ptr.7495. doi:10.1002/ptr.7495(IF:5.882)
[24] Lu H, Mei C, Yang L, et al. PPM-18, an Analog of Vitamin K, Induces Autophagy and Apoptosis in Bladder Cancer Cells Through ROS and AMPK Signaling Pathways. Front Pharmacol. 2021;12:684915. Published 2021 Jul 9. doi:10.3389/fphar.2021.684915(IF:5.811)
[25] Wang Y, Shen H, Sun Q, et al. The New PI3K/mTOR Inhibitor GNE-477 Inhibits the Malignant Behavior of Human Glioblastoma Cells. Front Pharmacol. 2021;12:659511. Published 2021 Jul 26. doi:10.3389/fphar.2021.659511(IF:5.811)
[26] Wang L, Li M, Sha B, et al. Inhibition of deubiquitination by PR-619 induces apoptosis and autophagy via ubi-protein aggregation-activated ER stress in oesophageal squamous cell carcinoma. Cell Prolif. 2021;54(1):e12919. doi:10.1111/cpr.12919(IF:5.753)
[27] Liao L, Jiang C, Chen J, et al. Synthesis and biological evaluation of 1,2,4-triazole derivatives as potential neuroprotectant against ischemic brain injury. Eur J Med Chem. 2020;190:112114. doi:10.1016/j.ejmech.2020.112114(IF:5.573)
[28] Xie X, Li M, Zhou M, Chow SF, Tsang CK. Pharmacological preconditioning by TERT inhibitor BIBR1532 confers neuronal ischemic tolerance through TERT-mediated transcriptional reprogramming. J Neurochem. 2021;159(4):690-709. doi:10.1111/jnc.15515(IF:5.372)
[29] Zhang Y, Liu S, Ma JL, et al. Apocynum venetum leaf extract alleviated doxorubicin-induced cardiotoxicity through the AKT/Bcl-2 signaling pathway. Phytomedicine. 2022;94:153815. doi:10.1016/j.phymed.2021.153815(IF:5.340)
[30] Zhou WX, Chen C, Liu XQ, Li Y, Kong LY, Luo JG. Synthesis and biological evaluation of novel withangulatin A derivatives as potential anticancer agents. Bioorg Chem. 2021;108:104690. doi:10.1016/j.bioorg.2021.104690(IF:5.275)
[31] Wu WB, Menon R, Xu YY, et al. Downregulation of peroxiredoxin-3 by hydrophobic bile acid induces mitochondrial dysfunction and cellular senescence in human trophoblasts. Sci Rep. 2016;6:38946. Published 2016 Dec 13. doi:10.1038/srep38946(IF:5.228)
[32] Bu S, Wang Q, Zhang Q, et al. Human endometrial mesenchymal stem cells exhibit intrinsic anti-tumor properties on human epithelial ovarian cancer cells. Sci Rep. 2016;6:37019. Published 2016 Nov 15. doi:10.1038/srep37019(IF:5.228)
[33] Liu L, Sun X, Guo Y, Ge K. Evodiamine induces ROS-Dependent cytotoxicity in human gastric cancer cells via TRPV1/Ca2+ pathway. Chem Biol Interact. 2022;351:109756. doi:10.1016/j.cbi.2021.109756(IF:5.194)
[34] Zhu L, Xia C, Wu L, et al. The critical role of RasGRP4 in the growth of diffuse large B cell lymphoma. Cell Commun Signal. 2019;17(1):92. Published 2019 Aug 13. doi:10.1186/s12964-019-0415-6(IF:5.111)
[35] Xu Y, Peng S, Cao X, et al. High doses of butyrate induce a reversible body temperature drop through transient proton leak in mitochondria of brain neurons. Life Sci. 2021;278:119614. doi:10.1016/j.lfs.2021.119614(IF:5.037)
[36] Han D, Wu X, Liu L, Shu W, Huang Z. Sodium tanshinone IIA sulfonate protects ARPE-19 cells against oxidative stress by inhibiting autophagy and apoptosis. Sci Rep. 2018;8(1):15137. Published 2018 Oct 11. doi:10.1038/s41598-018-33552-2(IF:4.380)
[37] Xu J, Li Y, Li Z, Shao W, Song J, Wei J. Acidic Tumor Microenvironment Promotes Pancreatic Cancer through miR-451a/MEF2D Axis. J Oncol. 2022;2022:3966386. Published 2022 Jan 12. doi:10.1155/2022/3966386(IF:4.375)
[38] Tang L, Wang F, Xiao L, et al. Yi-Qi-Jian-Pi formula modulates the PI3K/AKT signaling pathway to attenuate acute-on-chronic liver failure by suppressing hypoxic injury and apoptosis in vivo and in vitro. J Ethnopharmacol. 2021;280:114411. doi:10.1016/j.jep.2021.114411(IF:4.360)
[39] Xu F, Xie Q, Li YW, et al. Suppression of JNK/ERK dependent autophagy enhances Jaspine B derivative-induced gastric cancer cell death via attenuation of p62/Keap1/Nrf2 pathways. Toxicol Appl Pharmacol. 2022;438:115908. doi:10.1016/j.taap.2022.115908(IF:4.219)
[40] Du L, Li CR, He QF, et al. Downregulation of the ubiquitin ligase KBTBD8 prevented epithelial ovarian cancer progression. Mol Med. 2020;26(1):96. Published 2020 Oct 27. doi:10.1186/s10020-020-00226-7(IF:4.096)
[41] Cui XX, Yang X, Wang HJ, et al. Luteolin-7-O-Glucoside Present in Lettuce Extracts Inhibits Hepatitis B Surface Antigen Production and Viral Replication by Human Hepatoma Cells in Vitro. Front Microbiol. 2017;8:2425. Published 2017 Dec 6. doi:10.3389/fmicb.2017.02425(IF:4.076)
[42] You B, Dun Y, Zhang W, et al. Anti-insulin resistance effects of salidroside through mitochondrial quality control. J Endocrinol. 2020;244(2):383-393. doi:10.1530/JOE-19-0393(IF:4.041)
[43] Qiu YY, Zhang HS, Tang Y, et al. Mitochondrial dysfunction resulting from the down-regulation of bone morphogenetic protein 5 may cause microtia. Ann Transl Med. 2021;9(5):418. doi:10.21037/atm-21-831(IF:3.932)
[44] Luo M, Liu Y, Liu N, et al. Proscillaridin A inhibits hepatocellular carcinoma progression through inducing mitochondrial damage and autophagy. Acta Biochim Biophys Sin (Shanghai). 2021;53(1):19-28. doi:10.1093/abbs/gmaa139(IF:3.848)
[45] Guo Y, Sun J, Bu S, et al. Melatonin protects against chronic stress-induced oxidative meiotic defects in mice MII oocytes by regulating SIRT1. Cell Cycle. 2020;19(13):1677-1695. doi:10.1080/15384101.2020.1767403(IF:3.699)
[46] Yang K, Tang XJ, Xu FF, et al. PI3K/mTORC1/2 inhibitor PQR309 inhibits proliferation and induces apoptosis in human glioblastoma cells. Oncol Rep. 2020;43(3):773-782. doi:10.3892/or.2020.7472(IF:3.417)
[47] Tan X, Zeng Y, Tu Z, et al. TRPV1 Contributes to the Neuroprotective Effect of Dexmedetomidine in Pilocarpine-Induced Status Epilepticus Juvenile Rats. Biomed Res Int. 2020;2020:7623635. Published 2020 Apr 7. doi:10.1155/2020/7623635(IF:3.411)
[48] He Y, Chen Z, Zhang R, et al. Mitochondrial-Targeted Antioxidant Peptide SS31 Prevents RPE Cell Death under Oxidative Stress. Biomed Res Int. 2022;2022:6180349. Published 2022 May 27. doi:10.1155/2022/6180349(IF:3.411)
[49] Ji D, Zheng W, Huang P, et al. Huaier Restrains Cholangiocarcinoma Progression in vitro and in vivo Through Modulating lncRNA TP73-AS1 and Inducing Oxidative Stress. Onco Targets Ther. 2020;13:7819-7837. Published 2020 Aug 6. doi:10.2147/OTT.S257738(IF:3.337)
[50] Zhu ZJ, Zhai J, Hu JL, et al. Cryopiece, a novel carrier with faster cooling rate, high recovery rate and retrieval rate, for individual sperm cryopreservation. Transl Androl Urol. 2021;10(3):1121-1132. doi:10.21037/tau-20-1080(IF:3.150)
[51] Wu K, Luan G, Xu Y, et al. Cigarette smoke extract increases mitochondrial membrane permeability through activation of adenine nucleotide translocator (ANT) in lung epithelial cells [published correction appears in Biochem Biophys Res Commun. 2020 Dec 17;533(4):1527-1528]. Biochem Biophys Res Commun. 2020;525(3):733-739. doi:10.1016/j.bbrc.2020.02.160(IF:2.985)
[52] Qin X, Xu Y, Peng S, et al. Sodium butyrate opens mitochondrial permeability transition pore (MPTP) to induce a proton leak in induction of cell apoptosis. Biochem Biophys Res Commun. 2020;527(3):611-617. doi:10.1016/j.bbrc.2020.04.133(IF:2.985)
[53] Su Q, Wang J, Liu F, Zhang Y. Blocking Parkin/PINK1-mediated mitophagy sensitizes hepatocellular carcinoma cells to sanguinarine-induced mitochondrial apoptosis. Toxicol In Vitro. 2020;66:104840. doi:10.1016/j.tiv.2020.104840(IF:2.959)
[54] Yang T, Xu R, Su Q, et al. Chelerythrine hydrochloride inhibits proliferation and induces mitochondrial apoptosis in cervical cancer cells via PI3K/BAD signaling pathway. Toxicol In Vitro. 2020;68:104965. doi:10.1016/j.tiv.2020.104965(IF:2.959)
[55] Sun Y, Tian X, Wu H, et al. H2O2 signaling modulates Glycoprotein-1 induced programmed cell death in tobacco suspension cells. Pestic Biochem Physiol. 2021;171:104697. doi:10.1016/j.pestbp.2020.104697(IF:2.751)
[56] Ding L, Wu J, Tang N, et al. Antifungal activity of an allicin derivative against Penicillium expansum via induction of oxidative stress. J Basic Microbiol. 2020;60(11-12):962-970. doi:10.1002/jobm.202000267(IF:1.909)
